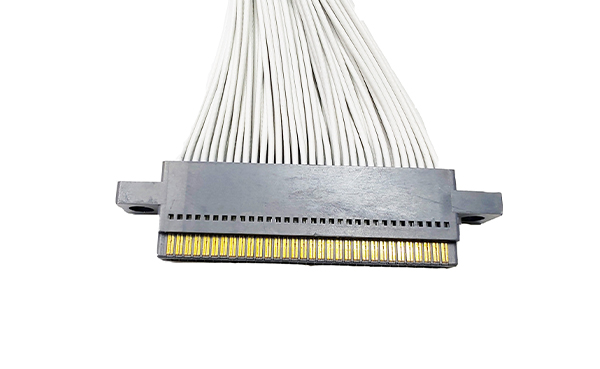

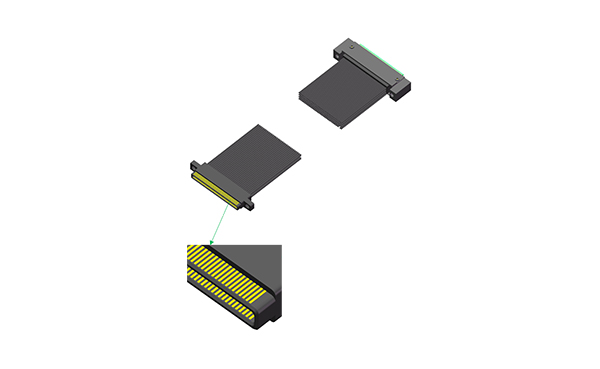

High-speed Connector To PCB Cable Assembly (1.8Ghz)

Features
Data Rate：3.6Gbps Impedance：50Ω Insertion Loss：< -2.0dB@1Ghz, @cable 0.6m；< -3.0dB@1.8Ghz, @cable 0.6m Return Loss：< -20dB@0~1.8Ghz Rated Voltage：DC 50V Current：1A/PIN（power） Withstand Voltage：360VAC Contact Resistance：≤ 80mΩ Insulation：1000MΩ Pin Number：256 Pin /320 Pin Insertion Force：50N Max. Extraction Force：15N Min. Test Life (Connector) ：10,000
